Today’s Powershell example is something that I know I will re-use, so I wanted to put it in a place where I could always find it, i.e. on my blog.

The main purpose of this example is to show how to route output from a cmdlet to a formatted or “pretty” output, such as as CSV File that can be opened by a spreadsheet such as Excel, a Powershell Grid, or an HTML file that can be opened by your favorite browser. If you create HTML to a string variable, instead of a file, it can also be used to send as the body of an email.

The second purpose is to put in one place all the common options for getting files from some disk/directory structure (using Get-ChildItem). Hopefully, I have taken information from 5 or 6 sources and condensed it down to one source; with comments of what you can tweak and change as needed.

cls
#simple take cmdlet and route to CSV (your choice of whether to -Append or remove it to replace).
Get-Process firefox | Export-CSV -Append -Path c:\test.csv -NoTypeInformation

$($PSScriptRoot)

Get-ChildItem -Recurse c:\Demo -File |  ## optionally -include *.txt,*.bak to match any combined set of file masks
# where {!$_.PsIsContainer} | ## old way was use to PsIsContainer means it is a folder 3.0 has -Directory and -File parms
# where Length -gt 50 |  ## use to filter by other properties   ## Note: Length is the file size
ForEach-Object {$_ | add-member -name "Owner" -membertype noteproperty -value (get-acl $_.fullname).owner -passthru} |
Select-Object FullName, Length, CreationTime, LastAccessTime, LastWriteTime, IsReadOnly, Attributes, Directory, Extension, Owner |
Sort-Object FullName |
#choose which output type you want - only one of the following
Export-CSV -Path c:\demo.csv -Force -NoTypeInformation
#Out-GridView
#ConvertTo-HTML -CssUri "$($PSScriptRoot)\htmlStyle2.css" | Out-File  C:\Demo.html

#StyleSheets
#http://johnsardine.com/freebies/dl-html-css/simple-little-tab/
#http://www.freshdesignweb.com/free-css-tables.html

Creating an HTML File Formatted with a CSS Stylesheet

The following effect is possible (Viewed in IE Browser):
Powershell_ConvertTo-HTML_OutputExample

When writing to an HTML file, a css stylesheet and pretty things up. Here is the example used above. I found it here: JohnSardin sample css for tables
Here’s his download link. You can download his code, and take out everything in the HTML style tags, and save in htmlStyle2.css. The parm to the -CssUri (in my code above) is on the ConvertTo-HTML cmdlet). I use $($PSScriptRoot) so that it can find the file in the current directory where the .ps1 file is running from (rather than needing to fully qualify the file with a hard-coded directory name).

Powershell_ConvertTo-HTML_CSSExample

Note: that the ConvertTo-HTML command does not include the THEAD and TBODY tags to be included. So if you find a stylesheet that uses them you may have to tweak it a little (or use RegEx to insert them into the file in the proper places). I experimented with some stylesheets from this site: 40 Free Beautiful CSS CSS3 Table Templates, but I was not having luck getting them to work.

CSV Viewed in Excel

Powershell_Export-CSV_Example

Here is the CSV data in raw format. CSV of course stands for Comma Separated Value.

"FullName","Length","CreationTime","LastAccessTime","LastWriteTime","IsReadOnly","Attributes","Directory","Extension","Owner"
"C:\Demo\Demo1.txt","12","2/2/2015 10:25:50 AM","2/2/2015 10:25:50 AM","2/2/2015 10:25:59 AM","False","Archive","C:\Demo",".txt","abc\neal.walters"
"C:\Demo\Notes.bak","12","2/2/2015 10:48:09 AM","2/2/2015 10:48:09 AM","2/2/2015 10:25:59 AM","False","Archive","C:\Demo",".bak","abc\neal.walters"
"C:\Demo\Notes.txt","12","2/2/2015 10:26:03 AM","2/2/2015 10:26:03 AM","2/2/2015 10:25:59 AM","False","Archive","C:\Demo",".txt","abc\neal.walters"
"C:\Demo\ReleaseNotes.txt","110","2/2/2015 10:26:18 AM","2/2/2015 10:26:18 AM","2/2/2015 10:26:41 AM","False","Archive","C:\Demo",".txt","abc\neal.walters"
"C:\Demo\SubDir\Demo2.txt","12","2/2/2015 10:44:18 AM","2/2/2015 10:44:18 AM","2/2/2015 10:25:59 AM","False","Archive","C:\Demo\SubDir",".txt","abc\neal.walters"

Powershell’s Built-in GridView

If you don’t need to export the data to another program, then the Out-GridView might be all you need. It also has the ability to sort and filter data. Filtering is available when you click the “Add Criteria” button.

Powershell_Out-Gridview_Example

Here’s an example of using the add criteria Filter (results not shown)
Powershell_Out-Gridview_Filter_Example

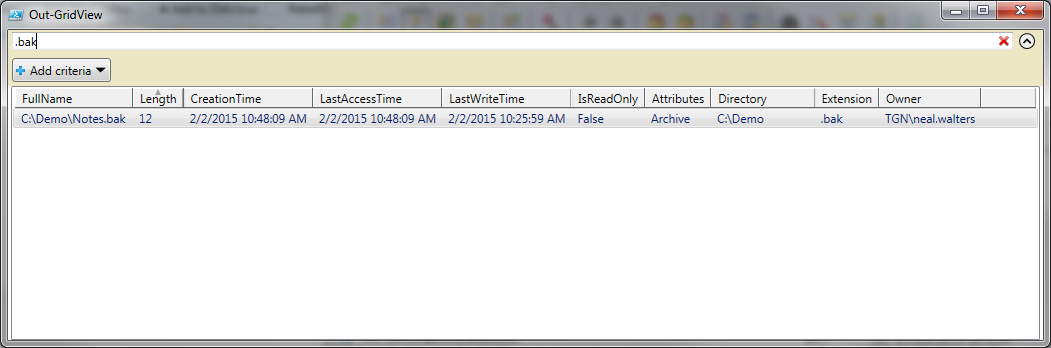

And here is an example of just typing a text filter on the top row:

Powershell_Out-Gridview_Filter_Example_2

This allows you to interactively “play” with your data. click any column title to sort. For a really fast filter, just type in the box at the top that say in light gray on white “Filter“. This searches the entire row for the raw text you type in. So in my case, I could type .bak, or “SubDir” to quickly limit the output to a certain row.
